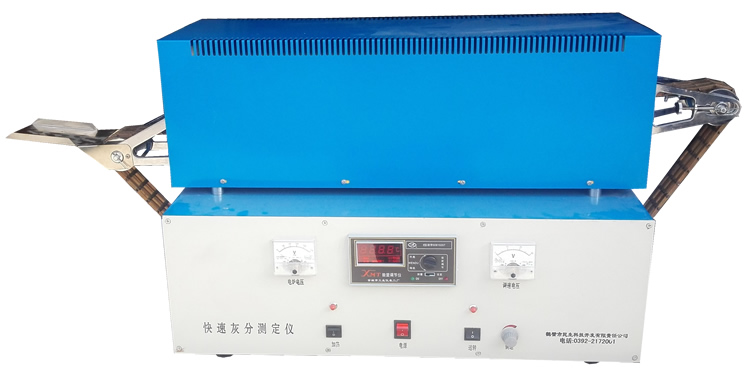

KH-3 fast ash analyzer

Applicable scope:

Applicable to coal, electric power, metallurgy, scientific research, etc and determination of department of coal and coke and other flammable materials of ash.

Features:

1 one-chip computer technology, automatic measurement and real-time control, temperature, and the current correction of high degree of automation.

2 adopts high brightness LED digital display, direct, precise and stable and reliable.

3 use chain transmission, automatic transmission, smooth operation, and adjustable speed.

4 the instrument, compared with muffle furnace with methods, this method has been into the national standard, High precision, small error determination,

Measurement speed, efficiency is muffle furnace of 4 ~ 5 times, Muffle furnace energy than one-third.

Technical parameters:

GB/T212 determination accuracy -- 2001 requirements. Control temperature range (100 ~ 1000) ℃

Temperature measurement precision temperature control precision level: 0.2

Control temperature Precision, ± 10 ℃

Length: 730mm furnace temperature warden: acuity 200mm Transmission speed (15-70) mm/min coal sample quality: 0.5 g

The work power supply: 220V ± 22V, 50HZ ± 1HZ

Power: acuities4KW

Shape dimension (mm) : 1200 × 420 × 505

Weight: 70kg

Ash analyzer
